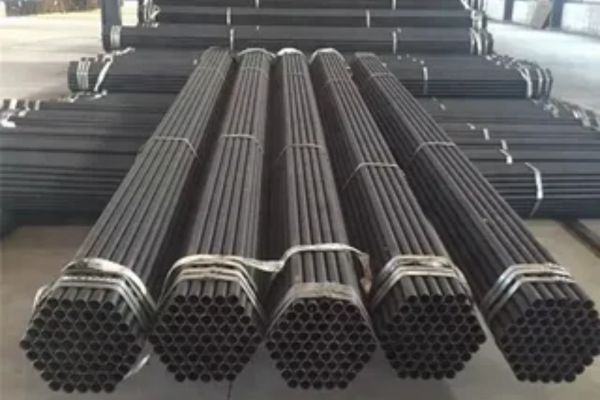

For manufacturers in Hamilton and beyond who rely on uncompromising quality, Latham Steel stands as a trusted local source for precision materials. Based right here in Hamilton, New Zealand, we specialise in supplying robust carbon steel tubing like the industry-respected SA179 grade. We understand that the heart of any strong project is dependable material, which is why we ensure our SA179 tubing meets the exacting standards required for critical heat exchange applications, providing our clients with both reliability and peace of mind.
The SA179 composition is a carefully balanced carbon steel, primarily iron with a touch of manganese and silicon for strength. Its true value lies in its mechanical properties, which are defined by excellent thermal conductivity and good ductility. This specific combination allows the tubing to be easily formed and bent while reliably handling the significant thermal stresses and pressures found inside heat exchangers and boilers, making it a workhorse material.
| Grade: | ASME/ASTM SA179, SA192, SA210, SA178, SA214, API 5L |
|---|---|
| Size: | 1/8” NB TO 24” NB Sch 40/80/160/XXS |
| Form | Round, Square, Rectangular, Coil, U Tube, |
| Length | Single Random, Double Random & Required Length |
| End | Plain End, Bevelled End |
| Type | Seamless / ERW / Welded |
| Certification For Carbon | Mill Test Certificate as per EN 10204 / 3.2B |
| General Requirements | ASTM A 530/A 530M |
| Dimensional Tolerances | ANSI B 36.10 |
| OD Range | 1.250″ – 6.000″ (30-150mm) |
| Wall Range | 0.095″ – 1.000″ (.2.5-25mm) |
| Carbon | Silicon | Manganese | Phosphorous | Sulphur | Molybdenum | Nickel | Chromium | Copper | Others |
|---|---|---|---|---|---|---|---|---|---|
| 0.10-0.20 | max 0.25 | 0.30-0.80 | 0.035 | 0.035 | – | – | – | – | – |
| Yield Strength | Tensile Strength | Elongation A5 min | |||
|---|---|---|---|---|---|
| MPa min | ksi min | MPa min | MPa min | ksi min | Percentage |
| 324 | – | 47 | 35 | ||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a leading manufacturer and distributor of high-quality Carbon Steel SA179 Tubing in Hamilton, New Zealand. We provide premium steel materials and a diverse range of products, including Alloy Steel, Carbon Steel, Mild Steel, and Galvanized Steel. Our extensive inventory includes Tubes, Pipes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Dedicated to timely delivery and exceptional customer service, we source the finest raw materials to ensure superior strength and performance for demanding industrial applications. Contact us today for all your Carbon Steel SA179 Tubing needs!
|
OD (mm) |
WT (mm) |
OD (mm) |
WT (mm) |
OD (mm) |
WT (mm) |
| 6.35 | 0.91 | 19.05 | 3.404 | 31.75 | 2.769 |
| 9.53 | 1.22 | 20 | 2 | 31.75 | 3.7 |
| 12.7 | 1.22 | 20 | 2.2 | 32 X 22 | 3.404 |
| 12.7 | 1.245 | 25 | 2 | 36 X 14 | 1.8 |
| 12.7 | 1.65 | 25 | 2.77 | 38 | 2.77 |
| 15.875 | 1.245 | 25.4 | 1.6 | 38 | 3.2 |
| 15.875 | 1.65 | 25.4 | 1.651 | 38.1 | 2.41 |
| 15.875 | 1.651 | 25.4 | 2 | 38.1 | 2.769 |
| 15.875 | 2.108 | 25.4 | 2.108 | 38.1 | 2.9 |
| 15.875 | 2.413 | 25.4 | 2.11 | 38.1 | 3.05 |
| 15.88 | 1.65 | 25.4 | 2.41 | 38.1 | 3.403 |
| 16 | 1.2 | 25.4 | 2.7 | 40 | 1.5 |
| 16 | 2 | 25.4 | 2.76 | 44.45 | 2.1 |
| 19.05 | 1.22 | 25.4 | 2.769 | 50.8 | 2.413 |
| 19.05 | 1.651 | 25.4 | 2.77 | 50.8 | 3.05 |
| 19.05 | 2 | 25.4 | 3.048 | 50.8 | 3.404 |
| 19.05 | 2.1 | 25.4 | 3.15 | 57.15 | 3.048 |
| 19.05 | 2.108 | 25.4 | 3.4 | 60.3 | 2 |
| 19.05 | 2.11 | 31.75 | 2.108 | 63.5 | 3.76 |
| 19.05 | 2.64 | 31.75 | 2.11 | 63.5 | 8 |
| 19.05 | 2.769 |
You’ll most often find SA179 tubing hard at work in the heart of heat transfer equipment. It’s the essential component in fabricating tubesheets for fire-tube boilers, as well as the inner workings of economisers and other heat exchangers. Its reliable performance under pressure and heat makes it the preferred choice for condensers and various refinery applications, where efficient thermal transfer is absolutely critical to the entire system’s smooth and safe operation.
Latham Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Hamilton, New Zealand.
