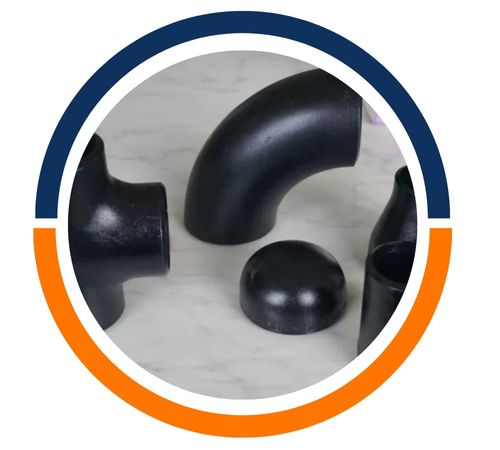

Latham Steel, based in the industrial heart of Hamilton, New Zealand, has built a reputation for supplying robust and reliable solutions for demanding environments. We proudly offer Low Temperature Carbon Steel A420 WPL6 Pipe Fittings, a product line engineered specifically for resilience when the mercury plummets. This commitment ensures that critical piping systems, from local food processing plants to large-scale energy projects, are equipped with components that guarantee both safety and performance, even under the most challenging cold-weather conditions. Our focus is on delivering dependable quality that our clients can count on.
The composition of A420 WPL6 is carefully balanced to perform in low-temperature service. Key elements like nickel are included to enhance toughness, preventing the steel from becoming brittle in the cold. This results in impressive mechanical properties, including high tensile strength and reliable impact values at temperatures as low as -50°C. Essentially, these fittings are designed to absorb stress and resist cracking, maintaining their integrity and ensuring the safety of the entire pipeline system when it’s needed most.
Specifications : ASTM A420 / ASME SA420
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
Size : 1/8” NB TO 48” NB. (Seamless & 100% X-Ray Welded, Fabricated)
Type : Seamless / Welded / Fabricated
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Grades : A420 WPL3 / A420 WPL6
Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
| Grade | C | Mn | Si | S | P | Cr | Mo |
| A420 WPL6 | 0.3 | 0.60-1.35 | 0.15-0.30 | 0.04 | 0.035 | 0.3 | 0.12 |
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) |
| A420 WPL6 | 60-85[415-585] | 35[240] |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

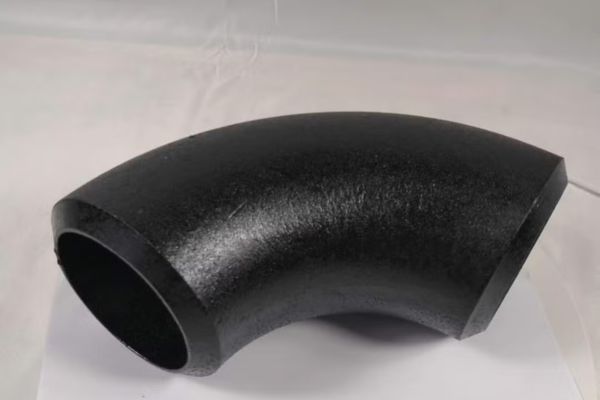

| Nom. Pipe Size | ASTM A420 Carbon Steel 90° Elbows | ASTM A420 Carbon Steel 45° Elbows | ASTM A420 Carbon Steel 180° Return Long Radius | |||||||||||
| Long Radius | Short Radius | 3R | Long Radius | 3R | STD | XS | ||||||||
| STD | XS | SCH. 160 | XXS | STD | XS | STD | XS | STD | XS | STD | XS | |||
| ½ | .18 | .25 | .09 | .19 | .35 | |||||||||
| ¾ | .19 | .25 | .09 | .19 | .40 | .65 | ||||||||
| 1 | .40 | .50 | .60 | .75 | .25 | 0.25 | .31 | .75 | 1.00 | |||||
| 1¼ | .60 | .90 | 1.00 | 1.38 | .4 | 0.38 | .50 | 1.25 | 1.75 | |||||
| 1½ | .90 | 1.15 | 1.80 | 1.50 | .56 | .75 | .40 | .69 | 1.88 | 2.39 | ||||
| 2 | 1.60 | 2.20 | 3.25 | 3.50 | 1.00 | 1.50 | 3.00 | 4.00 | .81 | 1.19 | 1.5 | 2.1 | 3.23 | 4.40 |
| 2½ | 3.25 | 4.00 | 5.13 | 7.00 | 2.13 | 2.80 | 6.00 | 8.00 | 1.75 | 2.13 | 3.00 | 4.00 | 6.50 | 8.00 |
| 3 | 5.00 | 6.50 | 8.50 | 11.0 | 3.00 | 4.25 | 10.0 | 13.0 | 2.63 | 3.50 | 5.00 | 7.00 | 10.25 | 13.00 |
| 3½ | 6.75 | 8.35 | 16.0 | 4.50 | 6.00 | 13.0 | 18.0 | 3.50 | 4.50 | 7.00 | 9.00 | 13.00 | 16.75 | |
| 4 | 9.00 | 13.5 | 18.0 | 20.0 | 6.25 | 8.50 | 18.0 | 25.0 | 4.50 | 6.10 | 9.00 | 13.0 | 18.5 | 25.0 |
| 5 | 15.0 | 22.0 | 32.0 | 36.0 | 9.60 | 14.0 | 29.0 | 43.0 | 7.50 | 10.7 | 15.0 | 22.0 | 30.0 | 44.0 |
| 6 | 24.5 | 35.0 | 57.0 | 65.0 | 18.0 | 23.0 | 45.0 | 70.0 | 12.0 | 17.5 | 23.0 | 35.0 | 50.0 | 70.0 |
| 8 | 50.0 | 71.0 | 120 | 118 | 34.0 | 47.5 | 90.0 | 140 | 23.0 | 35.0 | 45.0 | 70.0 | 95.0 | 142 |
| 10 | 88.0 | 107 | 260 | 58.0 | 70.0 | 159 | 218 | 43.0 | 53.0 | 80.0 | 109 | 117 | 215 | |
| 12 | 125 | 160 | 450 | 80.0 | 104 | 233 | 310 | 62.0 | 84.0 | 117 | 155 | 230 | 320 | |
| 14 | 160 | 205 | 572 | 105 | 140 | 298 | 400 | 80.0 | 100 | 149 | 200 | 325 | 400 | |
| 16 | 206 | 276 | 132 | 174 | 390 | 520 | 100 | 135 | 195 | 260 | 412 | 550 | ||
| 18 | 260 | 340 | 167 | 219 | 495 | 660 | 126 | 167 | 248 | 330 | 510 | 690 | ||
| 20 | 320 | 420 | 210 | 275 | 610 | 810 | 160 | 206 | 305 | 405 | 640 | 830 | ||
| 22 | 394 | 520 | 735 | 980 | 197 | 260 | 368 | 490 | 787 | 1040 | ||||
| 24 | 460 | 600 | 298 | 392 | 875 | 1170 | 238 | 300 | 438 | 585 | 890 | 1200 | ||
| 26 | 550 | 729 | 1030 | 1370 | 275 | 365 | 515 | 685 | ||||||
| 30 | 734 | 975 | 1370 | 1830 | 367 | 488 | 685 | 915 | ||||||
| 36 | 1062 | 1412 | 1970 | 2630 | 531 | 706 | 985 | 1315 | ||||||
Latham Steel is a top manufacturer and supplier of high-quality Low Temperature Carbon Steel A420 WPL6 Pipe Fittings products in Hamilton, New Zealand. Specializing in steel solutions, we provide a wide range of products, including Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel. Our offerings include Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates. Known for our reliable delivery and superior customer service, we are committed to offering top-tier steel materials that ensure durability and performance across a wide range of industrial applications. We strive to meet the highest standards, making us a trusted partner for all your steel needs.
The primary use for these fittings is in piping systems that operate in or are exposed to frigid environments. You will typically find A420 WPL6 components in critical applications within the oil and gas industry, chemical processing plants, and refrigeration systems. They are essential for constructing safe and reliable networks that transport liquefied gases or other media at sub-zero temperatures. Their toughness makes them a trusted choice for anything from offshore platforms to local food freezing facilities, wherever failure is simply not an option due to the extreme cold.
