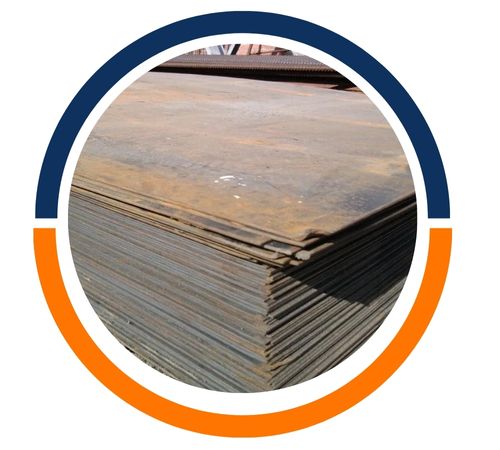

IS 2062 E350A Plates are made up of carbon, manganese, silicon, sulfur, and phosphorus in carefully controlled amounts, achieving an optimal balance for enhanced strength. This grade features a minimum yield strength of about 350 MPa and impressive tensile strength, making it suitable for medium to heavy structural applications. The material is known for its good weldability and ductility, thanks to a fine-grain microstructure that boosts toughness and overall mechanical consistency. These characteristics make E350A plates perfect for projects that involve dynamic loads, structural stress, and fabrication tasks that demand both strength and ease of shaping.
IS 2062 E350A plates are made from low-carbon steel. They contain carbon (up to 0.20%), manganese (1.50%), sulfur (up to 0.040%), phosphorus (up to 0.040%), and silicon (0.45%). These plates have a minimum yield strength of 350 MPa and a tensile strength between 490–610 MPa. They also have an elongation of 22%. The plates are easy to weld and very durable. They can withstand impacts well. Some benefits of these plates are their high strength and ability to resist damage, as well as being easy to work with. This makes them great for things like construction, bridges, shipbuilding, and other heavy projects where safety and strength are very important.
| Item | Hot Rolled Medium and High Tensile Structural Steel – IS 2062 E350A |
|---|---|
| Thickness | 5mm-150mm |
| Width | 1000mm-4500mm |
| Length | 3000mm-18000mm |
| Grade | C | Mn | S | P | Si | Carbon Equivalent (CE), Max |
|---|---|---|---|---|---|---|
| IS 2062 E 350 A | 0.20 | 1.55 | 0.045 | 0.045 | 0.45 | 0.47 |
| Grade | Tensile strength N/mm2 | Yield strength N/mm2 | Elongation (%) | ||
|---|---|---|---|---|---|
| ＜20mm | 20mm-40mm | ＞40mm | |||
| IS 2062 E350 | 490 | 350 | 330 | 320 | 22 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Latham Steel is one of the most prominent manufacturers and suppliers of superior quality IS 2062 E350A Plates in Hamilton, New Zealand. As experts in steel solutions, we supply a complete spectrum of products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product range comprises Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and first-rate customer service, we are committed to supplying high-quality steel materials that guarantee durability and excellent performance in numerous industrial applications.Â
| Thickness | Length x Width | Mass per Sq m | Thickness | Length x Width | Mass per Sq m |
|---|---|---|---|---|---|
| mm | mm | Kg/m2 | mm | mm | Kg/m2 |
| 3 | 2500 x 1250 mm | 23.055 | 30.000 | 2500 x 1250 | 235.050 Kg/m2 |
| 3 | 3000 x 1500 mm | 23.055 | 30.000 | 3000 x 1500 | 235.050 Kg/m2 |
| 3 | 2000 x 1000 mm | 23.055 | 30.000 | 2000 x 1000 | 235.050 Kg/m2 |
| 3 | 3660 x 1830 mm | 23.055 | 30.000 | 4000 x 2000 | 235.050 Kg/m2 |
| 4 | 2000 x 1000 mm | 31.040 | 30.000 | 5000 x 2500 | 235.050 Kg/m2 |
| 3 | 4000 x 2000 mm | 23.055 | 30.000 | 5000 x 1250 | 235.050 Kg/m2 |
| 4 | 2500 x 1250 mm | 31.040 | 30.000 | 6000 x 2500 | 235.050 Kg/m2 |
| 4 | 3660 x 1830 mm | 31.040 | 32.000 | 2000 x 1000 | 251.020 Kg/m2 |
| 5 | 2000 x 1000 mm | 39.025 | 32.000 | 2500 x 1250 | 251.020 Kg/m2 |
| 5 | 4000 x 2000 mm | 39.025 | 35.000 | 4000 x 2000 | 274.075 Kg/m2 |
| 4 | 3000 x 1500 mm | 31.040 | 30.000 | 10000 x 2500 | 235.050 Kg/m2 |
| 5 | 2500 x 1250 mm | 39.025 | 32.000 | 3000 x 1500 | 251.020 Kg/m2 |
| 5 | 3660 x 1830 mm | 39.025 | 32.000 | 5000 x 2500 | 251.020 Kg/m2 |
| 5 | 4000 x 1750 mm | 39.025 | 35.000 | 2500 x 1250 | 274.075 Kg/m2 |
| 5 | 3000 x 1500 mm | 39.025 | 32.000 | 4000 x 2000 | 251.020 Kg/m2 |
| 5 | 6000 x 2000 mm | 39.025 | 40.000 | 2000 x 1000 | 314.000 Kg/m2 |
| 6 | 2500 x 1250 mm | 47.010 | 40.000 | 2500 x 1250 | 314.000 Kg/m2 |
| 6 | 3000 x 1500 mm | 47.010 | 40.000 | 3000 x 1500 | 314.000 Kg/m2 |
| 5 | 4000 x 1830 mm | 39.025 | 35.000 | 3000 x 1500 | 274.075 Kg/m2 |
| 6 | 3660 x 1830 mm | 47.010 | 40.000 | 4000 x 2000 | 314.000 Kg/m2 |
| 6 | 4000 x 1750 mm | 47.010 | 40.000 | 5000 x 2500 | 314.000 Kg/m2 |
| 6 | 3000 x 1525 mm | 47.010 | 40.000 | 4000 x 1750 | 314.000 Kg/m2 |
| 6 | 4000 x 1830 mm | 47.010 | 40.000 | 6000 x 2000 | 314.000 Kg/m2 |
| 6 | 6000 x 1500 mm | 47.010 | 45.000 | 2000 x 1000 | 353.025 Kg/m2 |
| 6 | 6000 x 1830 mm | 47.010 | 45.000 | 2500 x 1250 | 353.025 Kg/m2 |
| 6 | 4000 x 2000 mm | 47.010 | 40.000 | 7500 x 2500 | 314.000 Kg/m2 |
| 6 | 6000 x 2000 mm | 47.010 | 45.000 | 2500 x 1500 | 353.025 Kg/m2 |
| 6 | 8000 x 2000 | 47.010 | 45.000 | 4000 x 2000 | 353.025 |
| 6 | 8000 x 2500 | 47.010 | 45.000 | 5000 x 2500 | 353.025 |
| 6 | 6000 x 2500 mm | 47.010 | 45.000 | 3000 x 1500 | 353.025 Kg/m2 |
| 8 | 2000 x 1000 | 62.080 | 50.000 | 2000 x 1000 | 392.050 |
| 8 | 3000 x 1500 | 62.080 | 50.000 | 3000 x 1500 | 392.050 |
| 8 | 3660 x 1830 | 62.080 | 50.000 | 4000 x 2000 | 392.050 |
| 8 | 4000 x 2000 | 62.080 | 50.000 | 5000 x 2500 | 392.050 |
| 8 | 2500 x 1250 | 62.080 | 50.000 | 2500 x 1250 | 392.050 |
| 8 | 5000 x 2500 | 62.080 | 50.000 | 6000 x 2000 | 392.050 |
| 8 | 6000 x 2000 | 62.080 | 60.000 | 2000 x 1000 | 471.000 |
| 8 | 6000 x 1500 | 62.080 | 50.000 | 8000 x 2500 | 392.050 |
| 8 | 8000 x 2000 | 62.080 | 60.000 | 2500 x 1250 | 471.000 |
| 10 | 2500 x 1250 | 78.050 | 60.000 | 4000 x 2000 | 471.000 |
| 10 | 3000 x 1500 | 78.050 | 60.000 | 5000 x 2500 | 471.000 |
| 10 | 2000 x 1000 | 78.050 | 60.000 | 3000 x 1500 | 471.000 |
| 10 | 4000 x 1750 | 78.050 | 65.000 | 2000 x 1000 | 510.025 |
| 10 | 6000 x 1500 | 78.050 | 65.000 | 3000 x 1500 | 510.025 |
| 10 | 6000 x 2000 | 78.050 | 65.000 | 4000 x 2000 | 510.025 |
| 10 | 6000 x 2500 | 78.050 | 65.000 | 5000 x 2500 | 510.025 |
| 10 | 5000 x 2500 | 78.050 | 65.000 | 2500 x 1250 | 510.025 |
| 10 | 10000 x 2000 | 78.050 | 70.000 | 2000 x 1000 | 549.05 |
| 10 | 10000 x 2500 | 78.050 | 70.000 | 2500 x 1250 | 549.05 |
| 12 | 4000 x 2000 | 94.020 | 70.000 | 4000 x 2000 | 549.05 |
| 12 | 6000 x 2000 | 94.020 | 70.000 | 5000 x 2500 | 549.05 |
| 12 | 6000 x 2500 | 94.020 | 75.000 | 2000 x 1000 | 588.075 |
| 12 | 2000 x 1000 | 94.020 | 70.000 | 3000 x 1500 | 549.05 |
| 12.05 | 2000 x 1000 | 98.013 | 75.000 | 2500 x 1250 | 588.075 |
| 12.05 | 2500 x 1250 | 98.013 | 75.000 | 3000 x 1500 | 588.075 |
| 12.05 | 3050 x 1525 | 98.013 | 75.000 | 5000 x 2500 | 588.075 |
| 12.05 | 4000 x 1750 | 98.013 | 80.000 | 2000 x 1000 | 628.000 |
| 12.05 | 4000 x 2000 | 98.013 | 80.000 | 2500 x 1250 | 628.000 |
| 12.05 | 5000 x 2500 | 98.013 | 80.000 | 3000 x 1500 | 628.000 |
| 12.05 | 6000 x 1500 | 98.013 | 80.000 | 4000 x 2000 | 628.000 |
| 12.05 | 6000 x 2000 | 98.013 | 90.000 | 2000 x 1000 | 706.05 |
| 12.05 | 3000 x 1500 | 98.013 | 75.000 | 4000 x 2000 | 588.075 |
| 12.05 | 6000 x 2500 | 98.013 | 90.000 | 2500 x 1250 | 706.05 |
| 15 | 2500 x 1250 | 117.075 | 90.000 | 4000 x 2000 | 706.05 |
| 15 | 3000 x 1500 | 117.075 | 90.000 | 5000 x 2000 | 706.05 |
| 15 | 2000 x 1000 | 117.075 | 90.000 | 3000 x 1500 | 706.05 |
| 20 | 2500 x 1250 | 157.000 | 110.000 | 2000 x 1000 | 863.050 |
| 15 | 4000 x 1750 | 117.075 | 100.000 | 2000 x 1000 | 785.000 |
| 15 | 4000 x 2500 | 117.075 | 100.000 | 3000 x 1500 | 785.000 |
| 15 | 5000 x 2500 | 117.075 | 100.000 | 4000 x 2000 | 785.000 |
| 15 | 4000 x 2000 | 117.075 | 100.000 | 2500 x 1250 | 785.000 |
| 15 | 6000 x 2500 | 117.075 | 100.000 | 5000 x 2500 | 785.000 |
| 20 | 3000 x 1500 | 157.000 | 110.000 | 2500 x 1250 | 863.050 |
| weight | Thickness |
|---|---|
| （kg/m²） | （mm） |
| 2.75 kg/m² | 0.35 mm |
| 1.96 kg/m² | 0.25 mm |
| 2.36 kg/m² | 0.3 mm |
| 1.57 kg/m² | 0.2 mm |
| 7.85 kg/m² | 1 mm |
| 3.53 kg/m² | 0.45 mm |
| 4.32 kg/m² | 0.55 mm |
| 3.14 kg/m² | 0.4 mm |
| 3.93 kg/m² | 0.5 mm |
| 4.71 kg/m² | 0.6 mm |
| 5.1 kg/m² | 0.65 mm |
| 8.64 kg/m² | 1.1 mm |
| 5.89 kg/m² | 0.75 mm |
| 5.5 kg/m² | 0.7 mm |
| 7.07 kg/m² | 0.9 mm |
| 6.28 kg/m² | 0.8 mm |
IS 2062 E350A Plates find their place in a variety of applications, including structural frameworks, heavy engineering, machinery components, bridges, building supports, and transportation equipment. Their high strength and excellent weldability make them perfect for constructing cranes, truck bodies, railway components, pressure-bearing structures, conveyors, and material-handling equipment. Additionally, these plates are well-suited for fabricating tanks, platforms, mezzanines, and industrial sheds that face moderate to high stress. Industries such as construction, manufacturing, and mining rely on these plates for their durability and performance.
