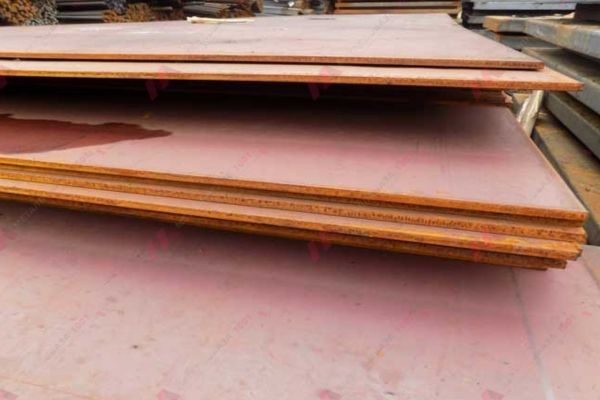

From the industrial heart of Hamilton, New Zealand, Latham Steel proudly stands as a trusted source for Corten steel sheet and plate. We understand that this unique material is more than just a product; it’s the foundation for creations that blend strength with a distinct, weathered character. We are committed to supplying high-quality Corten directly to fabricators, artists, and builders across the country, providing the essential building blocks for projects that are designed to endure and evolve beautifully over time.
What makes Corten steel so special is its distinctive chemical composition. It forms a stable, self-healing rust-like patina when exposed to the elements, which actually protects the inner layers from further corrosion. This unique characteristic means it requires no painting, creating a very practical, low-maintenance solution. Beneath that protective skin, the material retains excellent mechanical strength and toughness, allowing it to withstand significant structural loads and harsh weather conditions for decades without compromising its integrity.
Materials : Corten Steel Sheet/Plates
Standard : ASTM A588 / ASME SA588
Width : 750mm TO 1500mm
Length : 2500mm to 12000mm
Thickness : 0.8mm TO 50mm
Type : Corten Steel / High-Strength Low-alloy Structural Steel
Process : Hot-Rolled (HR)
| Corten – A Plates | ASTM 588 GR A | ASTM 242 TYPE -1 | IRSM 41 -97 | |
|---|---|---|---|---|
| Carbon, Max | 0.12 | 0.19 | 0.15 | 0.10 |
| Manganese | 0.20-50 | 0.80-1.25 | 1.00 | 0.25-0.45 |
| Phosphorus | 0.07-0.15 | 0.04 | 0.15 | 0.07-0.11 |
| Sulphur, max | 0.030 | 0.05 | 0.05 | 0.030 |
| Silicon | 0.25-0.75 | 0.30-0.65 | 0.25-0.40 | 0.28-0.72 |
| Nickel, max | 0.65 | 0.40 | – | 0.20-0.49 |
| Chromium | 0.50-1.25 | 0.40-065 | – | 0.30-0.50 |
| Molybdenum, max | – | – | – | – |
| Copper | 0.25-0.55 | 0.25-0.40 | 0.20 min | 0.30-0.39 |
| Vanadium | – | 0.02-0.10 | – | 0.050 |
| Aluminimum | – | … | – | 0.030 |
| Tensile Strength | Min. Yield Point | Elongation | |
|---|---|---|---|
| COR-TEN A | [470 – 630 MPa] | [355 MPa] | 20 % min |
| ASTM 588 GR. A | [485 MPa] | [345 MPa] | 21% min |
| ASTM 242 TYPE -1 | [480 MPa] | [345 MPa] | 16% min |
| Material # | EN 10155 | SEW 087 | NFA 35-502 | UNI | BS 4360 | ASTM | JIS G3114 |
|---|---|---|---|---|---|---|---|
| 1.8961 | S235J2W | WTSt 37-3 | E 24 W 4 | Fe 360 DK 1 | – | – | – |
| 1.8945 | S355J0WP | E 36 WA 3 | Fe 510 C1K1 | WR 50 A | – | – | – |
| 1.8946 | S355J2WP | – | E 36 WA 4 | Fe 510 D1K1 | – | A 242 Type 1 | – |
| 1.8959 | S355J0W | – | E 36 WB 3 | Fe 510 C2K1 | WR 50 B | A 588 – A 242 Gr. 1 | SMA 50 AW |
| 1.8963 | S355J2G1W | WTSt 52-3 | – | Fe 510 D2K1 | WR 50 C | A 588 Gr. A | to |
| 1.8965 | S355J2G2W | – | – | – | – | – | SMA 50 CP |
| 1.8966 | S355K2G1W | – | E 36 WB 4 | – | – | A 709 Gr. 50 W | – |
| 1.8967 | S355K2G2W | – | – | – | – | – | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Latham Steel is one of the most prominent manufacturers and suppliers of superior quality Corten Steel Sheet and Plate in Hamilton, New Zealand. As experts in steel solutions, we supply a complete spectrum of products like Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our product range comprises Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Known for our reliable delivery and first-rate customer service, we are committed to supplying high-quality steel materials that guarantee durability and excellent performance in numerous industrial applications.
| Thickness | Width | Length |
|---|---|---|
| 1/2 inch | 48.00 inch | 120.00 inch |
| 1/4 inch | 60.00 inch | 120.00 inch |
| 1/4 inch | 48.00 inch | 120.00 inch |
| 3/8 inch | 48.00 inch | 120.00 inch |
| Thickness | Weight (lbs/ft) |
|---|---|
| 3/8″ | 15.315 |
| 1/4″ | 10.210 |
| 1/4″ | 10.210 |
| 1/2″ | 20.420 |
| FINISH | STOCK | SHEET SIZE MM | THICKNESS MM |
|---|---|---|---|
| Bright | Natural | 3000 x 1500, 2500 x 1250 | 0.8 – 3.0 |

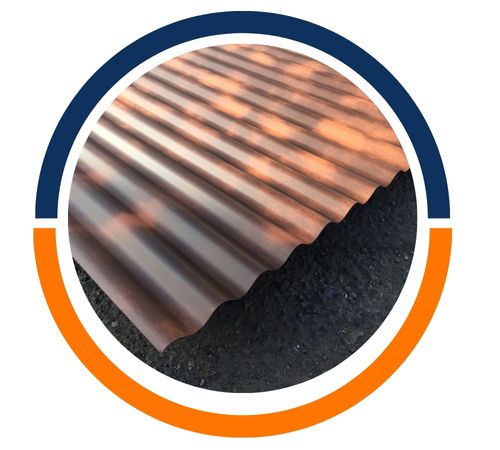

| Bright | Corrugated | 3000 x 1110 | 0.8 |
| Bright | Natural | 2500 x 1250 | 1 |
| Patina Rust (to order) | Rusted | 3000 x 1500, 2500 x 1250 | 0.8 – 3.0 |
| Patina Rust (to order) | Rusted | 2500 x 1250 | 1 |
| Rusted (to order) | Corrugated | 3000 x 1110 | 0.8 |
The applications for this remarkable material are wonderfully diverse. Its striking aesthetic makes it a favourite for architectural cladding, sculptural art, and landscape features like retaining walls and planter boxes, where its evolving rusted appearance adds a warm, industrial charm. Beyond its good looks, its durability is harnessed for heavy-duty uses including structural bridges, industrial containers, and marine infrastructure. Essentially, Corten is the ideal choice wherever you need a combination of rugged longevity and a unique, ever-changing visual appeal.
Latham Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Hamilton, New Zealand.
