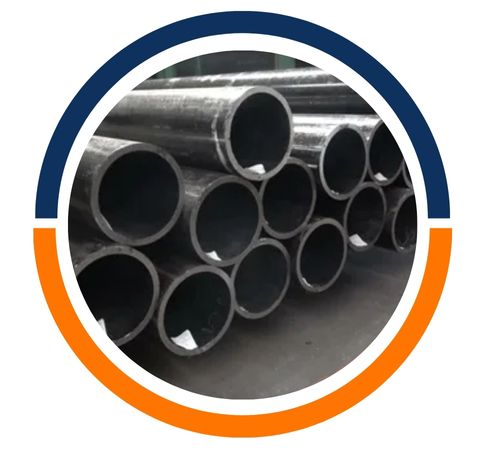

From the heart of Hamilton’s industrial landscape, Latham Steel is proud to be a trusted manufacturer and supplier of high-grade steel solutions. Our commitment to quality shines through in products like our Carbon Steel EN 10083-2 Grade C25E Pipe. We understand that robust, reliable materials are the backbone of countless projects, which is why we ensure this particular grade meets the highest standards for demanding applications, providing strength and consistency you can depend on.
The C25E grade is characterised by its well-balanced composition, containing around 0.22-0.29% carbon, which gives it a great mix of strength and workability. In terms of mechanical properties, it offers a minimum yield strength of 355 MPa and a tensile strength between 500-700 MPa. This makes it a medium-carbon steel that can be easily heat-treated for enhanced hardness and wear resistance, striking an excellent balance for engineers who need a material that is both tough and versatile for fabrication.
| Specification | Details |
|---|---|
| Material | EN 10083-2 Grade C25E Carbon Steel |
| Product | Seamless Pipes and Tubes |
| Applications | General purpose applications worldwide |
| Characteristics | – Ductile and strong |
| – Long wearing properties | |
| Standard | Manufactured as per EN 10083-2 specification |
| Commercial Reference | Referred to as Carbon Steel Pipes and Tubes |
| Surface Hardness | Not as hard as high carbon steel pipes, but can be increased through carburizing |
| Carbon | Silicon | Manganese | Phosphorous | Sulphur | Molybdenum | Nickel | Chromium | Copper | Others |
|---|---|---|---|---|---|---|---|---|---|
| 0.22-0.29 | max 0.40 | 0.40-0.70 | 0.035 | 0.035 | max 0.10 | max 0.40 | max 0.40 | – | – |
| Yield Strength | Tensile Strength | Elongation A5 min | |||
|---|---|---|---|---|---|
| MPa min | ksi min | MPa min | MPa min | ksi min | Percentage |
| 470 | – | – | 22 | ||
| DIN | EN | BS | NFA | ASTM | ASME |
|---|---|---|---|---|---|
| – | EN 10083-2 Grade C25E | – | – | – | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a trusted manufacturer and supplier of high-quality Carbon Steel EN 10083-2 Grade C25E Pipe products in Hamilton, New Zealand. Specializing in premium steel materials, we offer a comprehensive range, including Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our extensive inventory features Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. Committed to reliable delivery and exceptional customer service, Jaxon Steel provides top-grade materials that ensure superior performance across various industrial applications. Trust Jaxon Steel for all your Carbon Steel EN 10083-2 Pipe needs.
| Execution | Size Range | OD Tolerance | Wall tolerance |
|---|---|---|---|
| Hot-rolled Tube | OD – 80 mmOD > 80 mmWall < 12 mmWall – 12 mm | ± 0.4 mm± 0.5 % of OD | ± 0.7 mm± (5 % x wallthickness + 0.1 mm |
| Hot-rolled peeled tube | All sizesWall < 12 mmWall – 12 mm | + 0.25/- 0 mm | ± 0.8 mm± (5 % x wall thickness+ 0.2 mm) |
| Cold Worked tubecold-rolled or cold-drawn | OD < 40 mmOD 40 – 80 mmOD > 80 Wall Thickness < 6 mm Wall Thickness6 – 8 mm Wall Thickness > 8 | + 0.30/- 0 mm*+ 0.35/- 0 mm*+ 0.40/- 0 mm* | ± 0.30 mm± 0.35 mm± 0.40 mm |
Thanks to its reliable strength and good machinability, this C25E pipe is a go-to choice for a wide array of structural and mechanical uses. You’ll often find it forming the framework for machinery, in hydraulic cylinders, and in the creation of automotive parts like gears and axles. Its performance also makes it suitable for various components in the general engineering and construction sectors, where a durable yet workable steel is needed to create parts that must withstand significant stress and wear over time.
Latham Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Hamilton, New Zealand.
