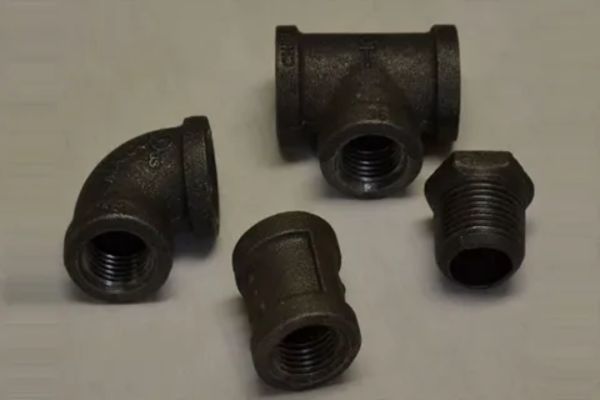

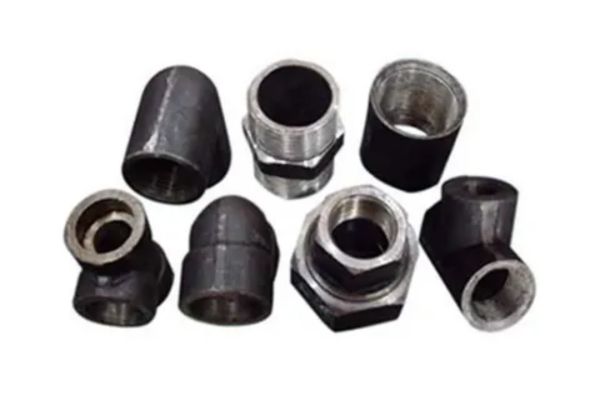

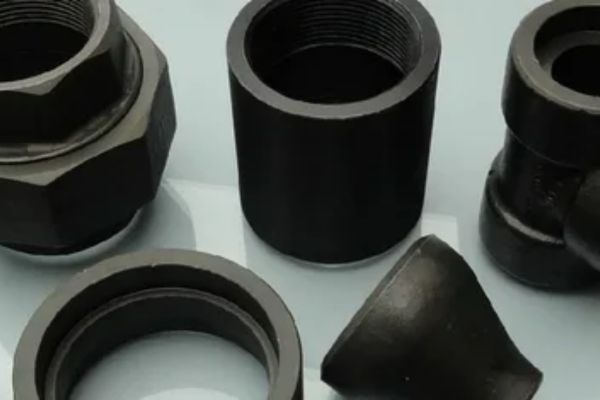

From the industrial heart of Hamilton, New Zealand, Latham Steel has built its reputation on precision and resilience, qualities perfectly embodied in our Carbon Steel F80 Forged Fittings. We understand the demanding environments our clients operate in, which is why we focus on supplying robust components engineered for reliability. These forged fittings are a testament to our commitment to New Zealand industry, providing a dependable local source for the high-strength connections that keep critical systems running smoothly and safely, day in and day out.
The strength of these fittings begins with their careful composition, primarily carbon steel, which is forged under intense pressure to refine its internal grain structure. This process significantly enhances its mechanical properties, resulting in a fitting with a minimum yield strength of 80 ksi, offering exceptional resistance to deformation under high pressure. This combination of material and manufacturing creates a component known for its toughness and durability, capable of withstanding significant stress and impact, making it a trusted choice for challenging applications where failure is not an option.
Standard :Ā ASTM A694 / ASME SA 694
Dimensions :Ā ASME/ANSI 16.11, MSS SP-79, 83, 95, 97, BS 3799
Size :Ā 1/8″ NB to 4″ NB
Type :Ā Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure :Ā Threaded End – 2000 /3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS.
| Grade | C | Si | Mn | P | S | Mo | Ni | Cr | Cu | V | Nb |
| F80 | 0.17-0.23 | 0.15-0.40 | 1.30-1.60 | ā¤ 0.025 | ā¤ 0.015 | 0.45-0.65 | ā¤ 0.30 | ā¤ 0.30 | ā¤ 0.25 | – | 0.025~0.050 |
| Grade | Yield Strength, Min (KSI ) | Tensile Strength, Min (KSI) |
| A694 | 65 | 77 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.

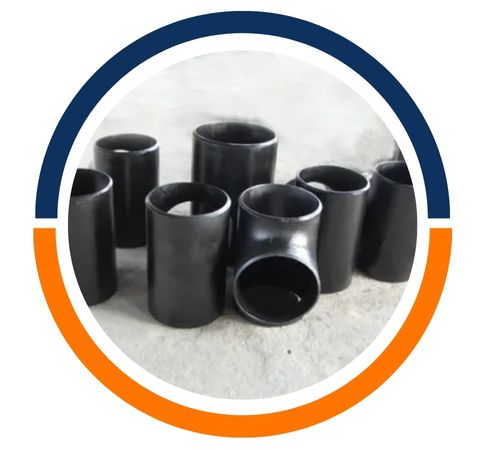

| ASME B16.11 | Factory-Made Wrought Socketweld Fittings | CS F80Ā Forged Screwed Elbows, Street Elbow, Carbon Steel F80Ā Screwed Unequal Tee, Steel Straight Tee, Carbon Steel F80Ā Reducing Coupling, Carbon Steel F80Ā Hex Plug, Forged Straight Tees, Socket Weld Pipe Cap, Forged Pipe Cap, Equal Crossess, CS F80Ā Threaded Bushing, Carbon Steel F65 Screwed Caps, Swedge Nipples |
| MSS-SP-79 | standard Practice covers ratings, tolerances, finish, dimensions, marking and material requirements for socket-welding | Carbon Steel F80Ā Barrel Nipples, CS F80Ā Forged Threaded Boss, Carbon Steel F80Ā Forged Hex Head Bull Plugs |

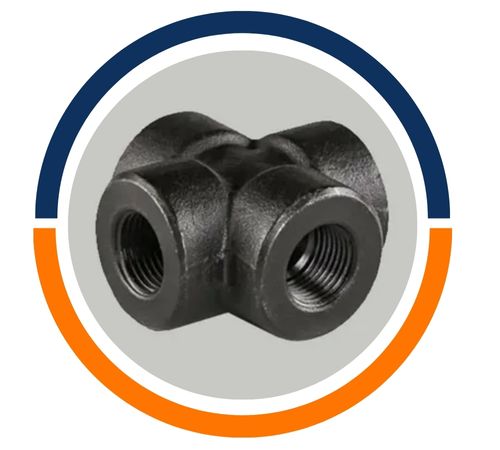

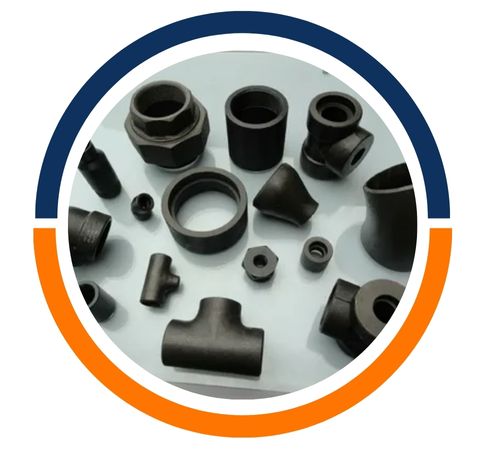

| MSS-SP-83 | Forged and Fabricated Socket-Welding Fittings for Low Pressure, Corrosion Resistant Applications | Carbon Steel F80Ā High Quality Socket weld 90Ā° Elbow, Straight and Reducing-on-the-Tees, Forged 45Ā° Short Radius Elbow, CS F80Ā caps, 3000LB Socket Weld Cross |

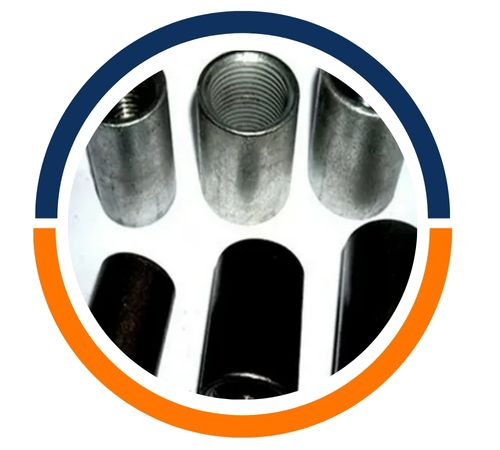

| MSS-SP-95 | Integrally Reinforced Forged Fittings ā Socket Welding, Threaded, and Buttwelding Ends | CS F80Ā Socket weld Long Radius 90 Degree Elbows, Reducing Nipple, Socketweld Bushing, Threaded Plug, End Pipe caps, Carbon Steel F80Ā Coupling |
You’ll find Carbon Steel F80 Forged Fittings hard at work in some of the most critical systems, forming secure connections in high-pressure oil and gas pipelines, power generation plants, and chemical processing facilities. Their exceptional strength makes them ideal for hydraulic systems, industrial machinery, and offshore platforms, where they ensure integrity under extreme loads and temperatures. Essentially, wherever there’s a need for a connection that simply cannot afford to fail, these forged fittings provide the proven reliability that engineers and project managers count on for long-term, safe operation.
Latham Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Hamilton, New Zealand.
