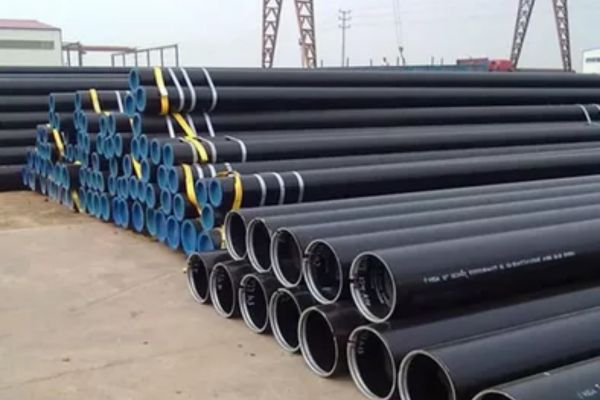

Situated in the industrial heart of Hamilton, Latham Steel has built a strong reputation as a trusted local source for high-quality steel products. We are proud to supply the Carbon Steel EN 10210-1 Grade S235JRH Pipe, a cornerstone material known for its reliable performance. This particular grade is a go-to choice for many of our clients in construction and engineering, offering a dependable combination of strength and workability that forms the backbone of countless projects across New Zealand and beyond.
This specific grade of carbon steel pipe is defined by its well-balanced composition and mechanical traits. It’s a non-alloy steel where elements like carbon, manganese, and phosphorus are carefully controlled to ensure consistency. In terms of strength, it offers a minimum yield strength of 235 MPa, which provides excellent structural integrity without being overly hard to work with. This balance means it can be easily cut, welded, and formed on-site, making it a highly versatile and practical material for fabricators.
| Property | Specification |
|---|---|
| Dimensional Tolerances | Thickness: All sizes +/- 10% |

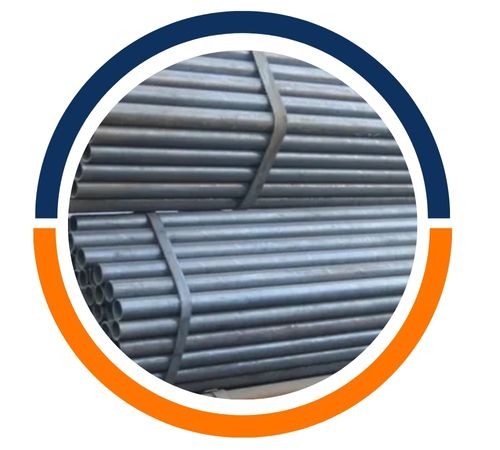

| Type | Seamless, Welded, ERW |
| Length | 6000 – 14000 mm |

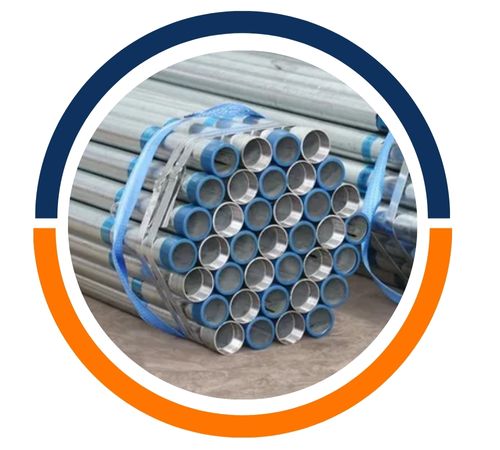

| Surface Protection | Black (Self-Colored, Uncoated), Varnish/Oil Coating, Pre-Galvanized, Hot Dip Galvanized |
| Wall Thickness | 0.5 mm – 25 mm |
| Standard | BS EN 10210 – Hot Finished Structural Hollow Sections of Non-Alloy and Fine Grain Steels |

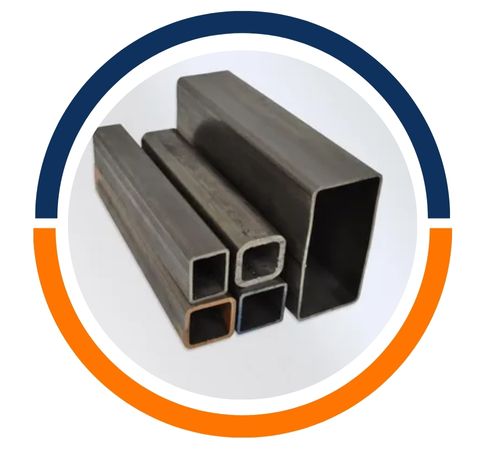

| SHS (Square Hollow Sections) Sizes | 20 x 20 mm – 400 x 400 mm |
| Grade | S235JRH |
| Dimension Range | 21.3 mm – 914 mm |
| Packing | In bundles, Anti-corrosion heat preservation, Varnish coating, Ends can be bevelled or square cut, End capped, Certification & supplementary test, Finishing & Identity Mark |
| Carbon | Silicon | Manganese | Phosphorous | Sulphur | Molybdenum | Nickel | Chromium | Copper | Others |
|---|---|---|---|---|---|---|---|---|---|
| max 0.17 | – | max 1.40 | 0.045 | 0.045 | – | – | – | – | N0.009 |
| Yield Strength | Tensile Strength | Elongation A5 min | |||
|---|---|---|---|---|---|
| MPa min | ksi min | MPa min | MPa min | ksi min | Percentage |
| 340 | 470 | – | 26 | ||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Jaxon Steel is a trusted manufacturer and supplier of high-quality Carbon Steel EN 10210-1 Grade S235JRH Pipe in Hamilton, New Zealand. Specializing in premium steel materials, we offer a diverse range of products, including Carbon Steel, Alloy Steel, Mild Steel, and Galvanized Steel. Our extensive inventory features Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets, and Plates. With a strong commitment to reliable delivery and exceptional customer service, Jaxon Steel provides top-grade materials that ensure superior performance in various industrial applications. Trust Jaxon Steel for all your Carbon Steel EN 10210-1 Grade S235JRH Pipe needs.
| 1/8″ IPS(.405″ O.D.) | 3 1/2″ IPS( 4.000″ O.D.) |
|---|---|
| SCH 40, 80 | SCH 10, 40, 80, 160, XXH |
| 1/4″ IPS(.540″ O.D.) | 4″ IPS(4.500″ O.D.) |
| SCH 10, 40, 80 | SCH 10, 40, 80, 160, XXH |
| 3/8″ IPS(.675″ O.D.) | 5″ IPS( 5.563″ O.D.) |
| SCH 10, 40, 80 | SCH 10, 40, 80, 160, XXH |
| 1/2″ IPS(.840″ O.D.) | 6″ IPS(6.625″ O.D.) |
| SCH 5, 10, 40, 80, 160, XXH | SCH 5, 10, 40, 80, 120, 160, XXH |
| 3/4″ IPS(1.050″ O.D.) | 8 ” IPS(8.625″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH 5, 10, 40, 80, 120, 160, XXH |
| 1″ IPS:(1.315′ O.D.) | 10″ IPS(10.750″ O.D.) |
| SCH 5, 10, 40, 80, 160, XXH | SCH 10, 20, 40, 80 (.500), TRUE 80(.500) |
| 1-1/4″ IPS(1.660″ O.D.) | 12″ IPS(12.750″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500) |
| 1-1/2″ IPS(1.900″ O.D.) | 14″ IPS(14.000″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH10 (.188), SCH40 (.375) |
| 2″ IPS(2.375″ O.D.) | 16″ IPS(16.000″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH10(.188), SCH40(.375) |
| 2 1/2″ IPS(2.875″ O.D.) | 18″ IPS (18.000″ O.D.) |
| SCH 10, 40, 80, 160, XXH | SCH-40 (.375) |
| 3″ IPS( 3.500″ O.D.) | |
| SCH 5, 10, 40, 80, 160, XXH |
| Outer diameter and wall Thickness | |||
|---|---|---|---|
| Execution | Size Range | OD Tolerance | Wall tolerance |
| Hot-rolled Tube | OD – 80 mmOD > 80 mmWall < 12 mmWall – 12 mm | ± 0.4 mm± 0.5 % of OD | ± 0.7 mm± (5 % x wallthickness + 0.1 mm |
| Hot-rolled peeled tube | All sizesWall < 12 mmWall – 12 mm | + 0.25/- 0 mm | ± 0.8 mm± (5 % x wall thickness+ 0.2 mm) |
| Cold Worked tubecold-rolled or cold-drawn | OD < 40 mmOD 40 – 80 mmOD > 80 Wall Thickness< 6 mm Wall Thickness6 – 8 mm Wall Thickness > 8 | + 0.30/- 0 mm*+ 0.35/- 0 mm*+ 0.40/- 0 mm* | ± 0.30 mm± 0.35 mm± 0.40 mm |
The uses for this pipe are extensive, forming the skeleton of modern infrastructure. You’ll commonly find it in the structural frameworks of buildings, from commercial warehouses to large agricultural sheds. It’s also ideal for creating support columns, handrails, and various mechanical applications. Its excellent weldability and dependable strength make it a favourite for general engineering purposes, where it’s used in machinery frames, transport equipment, and a host of other industrial projects that require a sturdy and cost-effective steel solution.
