For over two decades, Latham Steel has been a cornerstone of Hamilton’s industrial landscape, building a reputation for reliability and deep technical knowledge. We take pride in being more than just a supplier; we are a trusted partner to New Zealand’s key industries. Our Alloy Steel P5 pipes are a perfect example of this commitment, offering a robust solution specifically engineered to handle the demanding conditions found in power generation and processing plants right here in Aotearoa.
The composition of Alloy Steel P5 is designed for resilience, primarily blending chromium and molybdenum to create a material that stands strong under intense heat and pressure. This specific mix gives these pipes exceptional mechanical properties, including high tensile strength and excellent resistance to creep. Essentially, this means they can withstand continuous stress at elevated temperatures without deforming, making them incredibly durable and dependable for critical applications where failure is not an option.
SA335 P5 Standard | ASTM A335 P5, SA335 P5 (with IBR Test Certificate) |
A335 P5 Size | 1/2” NB to 36” NB |
A335 P5 Thickness | 3-12mm |
A335 P5 Schedules | SCH 40, SCH 80, SCH 160, SCH XS, SCH XXS, All Schedules |
SA335 P5 Origin | European, Japanese, Korean, US, Russian, New Zealandn (Strictly No Chinese Material) |
A335 P5 Tolerance | Cold drawn pipe: +/-0.1mm Cold rolled pipe: +/-0.05mm |
Craft | Cold rolled and Cold drawn |

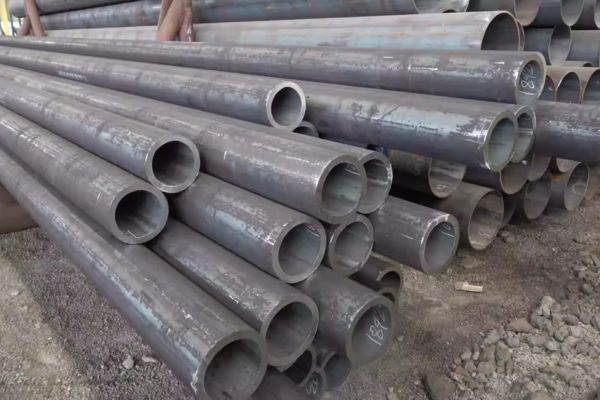

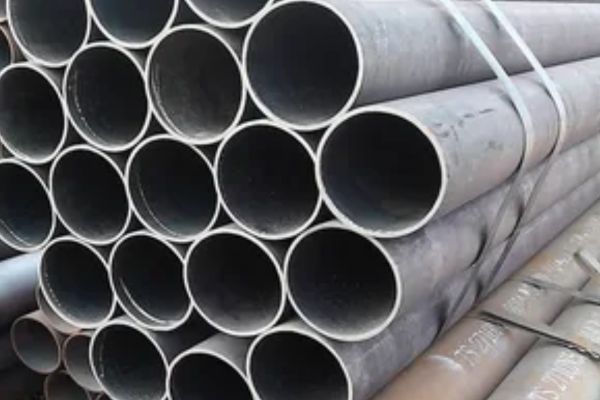

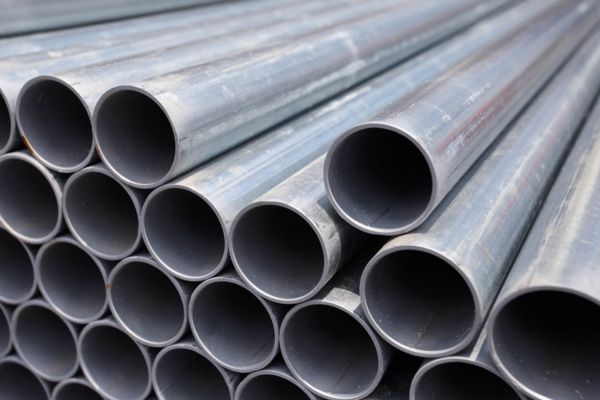

SA335 P5 Type | Seamless / ERW / Welded / Fabricated |

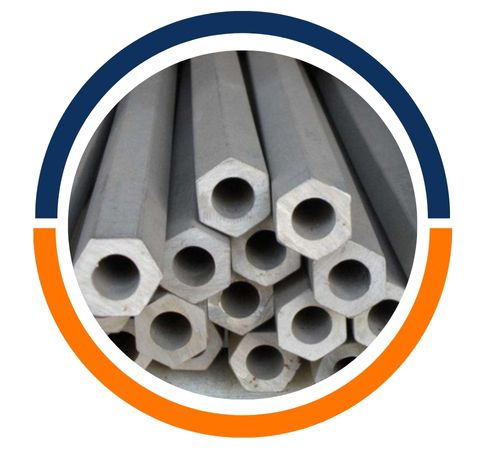

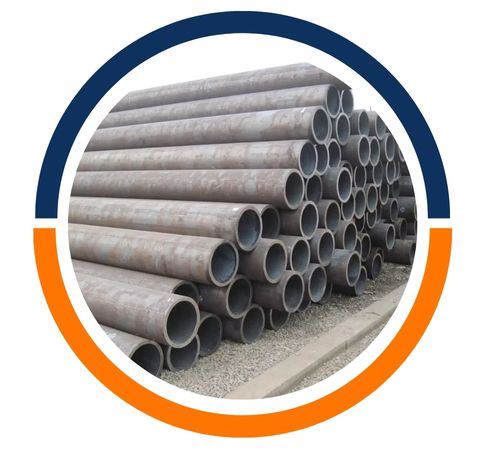

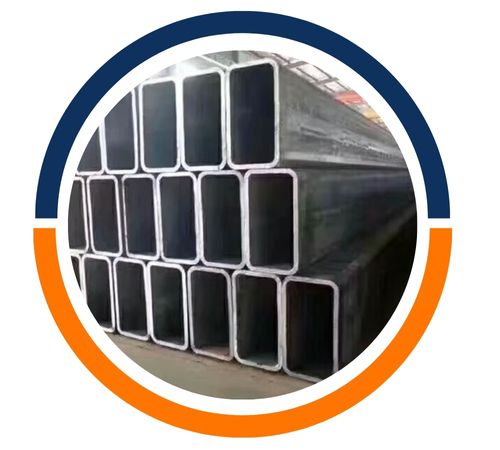

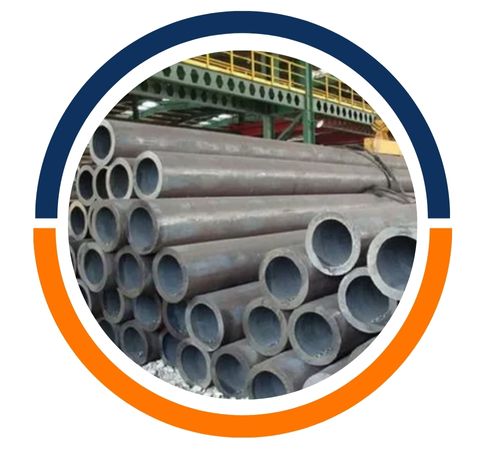

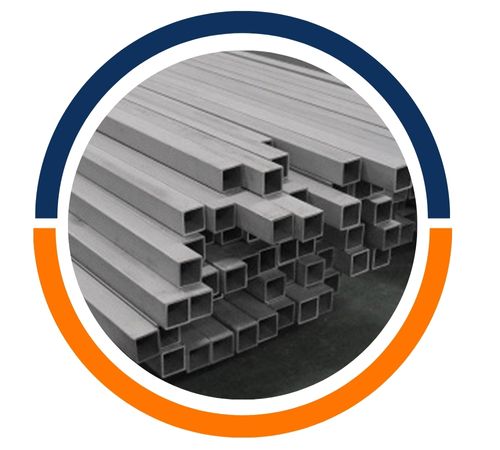

A335 P5 available in Form of | Round, Square, Rectangular, Hydraulic Etc. |
SA335 P5 Length | Standard Double & In Cut length also. |
A335 P5 End | Plain End, Beveled End, Treaded |
Specialized in | Large Diameter SA335 P5 |
Additional Testing | NACE MR 0175, NACE TM0177, NACE TM0284, HIC TEST, SSC TEST, H2 SERVICE, IBR, etc. |
Application | Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service |
| Alloy Steel P5 | C | Cr | Mn | Mo | P | S | Si |
| 0.05 – 0.15 | 4.00 – 6.00 | 0.30 – 0.60 | 0.45 – 0.65 | 0.025 max | 0.025 max | 0.50 – 1.00 |
| Tensile Strength, MPa | Yield Strength, MPa | Elongation |
| 415 min | 205 min | 30 min |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Latham Steel is a major manufacturer and a supplier of premium Alloy Steel P5 pipe in Hamilton, the New Zealand. With specialization in steel solutions, we offer a variety of products including carbon steel, alloy steel, light steel and galvanized steel. Our wide bearing has pipes, pipes, flanges, pipe fittings, forged fittings, sheets and plates. We are famous for our reliable distribution and extraordinary customer service, and are committed to offering high quality steel materials that ensure durability and better performance in different industrial applications. We are committed to skill, and we are your reliable partners for all steel requirements.
| ASTM | ASME | JIS G 3458 | UNS | BS | DIN | ISO | ABS | NK | LRS |
|---|---|---|---|---|---|---|---|---|---|
| A335 P5 | SA335 P5 | STPA 25 | K41545 | 3604 P1 625 | 2604 III TS37 | ABS 14 |
| O.D.(mm) x Thickness(mm) | O.D(mm) x Thickness(mm) | O.D(mm) x Thickness(mm) |
|---|---|---|
| 38.1 x 3.2 | 57.0 x 4.9 | 76.2 x 4.0 |
| 38.1 x 4.0 | 57.0 x 6.3 | 76.2 x 5.0 |
| 38.1 x 6.3 | 57.0 x 7.9 | 76.2 x 6.3 |
| 42.4 x 3.2 | 60.3 x 3.2 | 82.5 x 4.5 |
| 42.4 x 4.0 | 60.3 x 3.6 | 88.9 x 3.2 |
| 44.5 x 3.2 | 60.3 x 5.0 | 88.9 x 3.6 |
| 44.5 x 6.3 | 63.5 x 3.2 | 88.9 x 4.0 |
| 48.3 x 3.2 | 63.5 x 3.6 | 101.6 x 3.6 |
| 48.3 x 3.6 | 63.5 x 4.0 | 101.6 x 4.5 |
| 50.8 x 4.5 | 63.5 x 6.3 | 101.6 x 6.3 |
| 51.0 x 3.2 | 63.5 x 7.9 | 114.3 x 3.6 |
| 51.0 x 3.6 | 70.0 x 3.2 | 114.3 x 5.0 |
| 51.0 x 6.3 | 70.0 x 3.6 | 139.7 x 4.0 |
| 57.0 x 3.2 | 70.0 x 6.3 | 139.7 x 5.0 |
| 57.0 x 3.6 | 76.2 x 3.6 | 139.7 x 6.3 |
| ASTM A335 P5 Pipe Size NPS | Pipe O.D. | Wall Thickness | Pipe I.D. | Weight per Foot |
| 1/2 | 0.84 | 0.109 | 0.622 | 0.85 |
| 0.147 | 0.546 | 1.09 | ||
| 0.188 | 0.464 | 1.31 | ||
| 0.294 | 0.252 | 1.72 | ||
| 3/4 | 1.05 | 0.113 | 0.824 | 1.13 |
| 0.154 | 0.742 | 1.48 | ||
| 0.219 | 0.612 | 1.95 | ||
| 0.308 | 0.434 | 2.44 | ||
| 1 | 1.315 | 0.133 | 1.049 | 1.68 |
| 0.179 | 0.957 | 2.17 | ||
| 0.250 | 0.815 | 2.85 | ||
| 0.358 | 0.599 | 3.66 | ||
| 1 1/4 | 1.66 | 0.140 | 1.380 | 2.27 |
| 0.191 | 1.278 | 3.00 | ||
| 0.250 | 1.160 | 3.77 | ||
| 0.382 | 0.896 | 5.22 | ||
| 1 1/2 | 1.90 | 0.145 | 1.610 | 2.72 |
| 0.200 | 1.500 | 3.63 | ||
| 0.281 | 1.338 | 4.86 | ||
| 0.400 | 1.100 | 6.41 | ||
| 2 | 2.375 | 0.109 | 2.157 | 2.64 |
| 0.154 | 2.067 | 3.66 | ||
| 0.218 | 1.939 | 5.03 | ||
| 0.250 | 1.875 | 5.68 | ||
| 0.281 | 1.813 | 6.29 | ||
| 0.344 | 1.687 | 7.47 | ||
| 0.436 | 1.503 | 9.04 | ||
| 2 1/2 | 2.875 | 0.120 | 2.635 | 3.53 |
| 0.203 | 2.469 | 5.80 | ||
| 0.216 | 2.443 | 6.14 | ||
| 0.250 | 2.375 | 7.02 | ||
| 0.276 | 2.323 | 7.67 | ||
| 0.375 | 2.125 | 10.02 | ||
| 0.552 | 1.771 | 13.71 |
You’ll typically find our Alloy Steel P5 pipes hard at work in environments that demand unwavering performance. They are ideally suited for high-temperature piping systems in power stations, refineries, and chemical processing plants, efficiently transporting steam, hot gases, and other aggressive media. Their reliability makes them a preferred choice for pressure vessels, heat exchangers, and any application where superior strength and corrosion resistance at elevated temperatures are paramount to ensuring both operational safety and long-term efficiency.
Latham Steel is a leading manufacturer, supplier and exporter of high-quality Carbon Steel, Alloy Steel, Mild Steel and Galvanized Steel products. Our extensive product range includes Pipes, Tubes, Flanges, Pipe Fittings, Forged Fittings, Sheets and Plates, catering to various industries in Hamilton, New Zealand.
