For manufacturers and engineers in Hamilton and beyond seeking a dependable source for high-performance alloy steel, Latham Steel stands as a trusted local partner. We take pride in supplying Alloy Steel AISI 8620 bars, a material renowned for its exceptional balance of strength and toughness. Our commitment lies in providing Hamilton’s industrious landscape with consistent, high-quality stock that meets rigorous standards, ensuring your projects are built on a foundation of reliability and local expertise.
The composition of AISI 8620 steel is a key to its performance, featuring a blend of nickel, chromium, and molybdenum that enhances its core properties. This combination results in a material that offers good ductility and machinability in its annealed state, while also possessing the capacity for excellent case hardening. After proper heat treatment, these bars develop a hard, wear-resistant surface coupled with a tough, shock-absorbing core, making them ideal for demanding applications.
| AISI 8620 Steel Round Bar Plate Sheet Supply Range | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Type | Specification | Surface | |||||||||||||||||

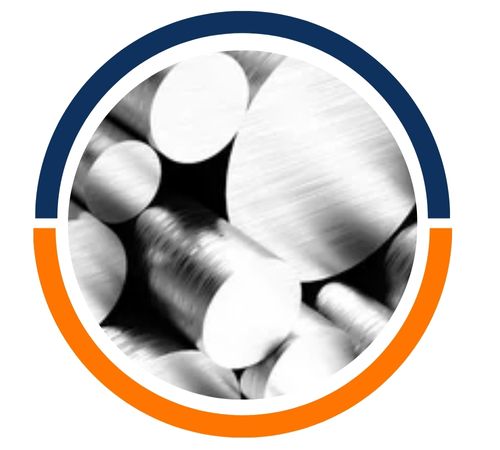

| Round Bar | Diameter: 16mm – 800mm; length: 2000mm-5000mm Other specifications can be customized. | Black Surface/Bright Surface/ Grinded/Peeled/Turned | |||||||||||||||||
| Sheet/Plate/Slab | Thickness: 16-800mm; width: 205mm-810mm; length: 2000mm-5000mm Other specifications can be customized. | Black Surface/Bright Surface/ Grinded/Peeled/Turned | |||||||||||||||||
| STAND | C(%) | Mn(%) | P(%) | S(%) | Si(%) | Cr(%) | Mo(%) | Ni(%) |
|---|---|---|---|---|---|---|---|---|
| ASTM A29/A29M-05 | 0.18-0.23 | 0.70-0.90 | ≤0.035 | ≤0.040 | 0.15-0.35 | 0.40-0.60 | 0.15-0.25 | 0.40-0.70 |
| EN 10084-2008 | 0.17-0.23 | 0.65-0.95 | ≤0.025 | ≤0.035 | 0.40 | 0.35-0.70 | 0.15-0.25 | 0.40-0.70 |
| JIS G4053-2008 | 0.17-0.23 | 0.60-0.90 | Max0.030 | Max0.030 | 0.15-0.35 | 0.40-0.60 | 0.15-0.25 | 0.40-0.70 |
| ISO 683/11:1987 | 0.17-0.23 | 0.65-0.95 | ≤0.035 | ≤0.035 | 0.15-0.40 | 0.30-0.65 | 0.15-0.25 | 0.40-0.70 |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 530 MPa | 76900 psi |
| Yield strength | 385 MPa | 55800 psi |
| Elastic modulus | 190-210 GPa | 27557-30458 ksi |
| Bulk modulus (typical for steel) | 140 GPa | 20300 ksi |
| Shear modulus (typical for steel) | 80 GPa | 11600 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Izod Impact | 115 J | 84.8 ft.lb |
| Hardness, Brinell | 149 | 149 |
| Hardness, Knoop (converted from Brinell hardness) | 169 | 169 |
| Hardness, Rockwell B (converted from Brinell hardness) | 80 | 80 |
| Hardness, Vickers (converted from Brinell hardness) | 155 | 155 |
| Machinability (hot rolled and cold drawn, based on 100 machinability for AISI 1212 steel) | 65 | 65 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Country | USA | Germany/New Zealand/France | JAPAN | ISO |
|---|---|---|---|---|
| Standard | ASTM A29/A29M-05 | EN 10084-2008 | JIS G4053-2008 | ISO 683/11:1987 |
| Grades | 8620 | 20NiCrMo2-2 (1.6523) | SNCM220 | 20NiCrMo2 |
This unique set of properties makes AISI 8620 bars incredibly versatile. They are the go-to choice for components that must withstand significant stress and wear, such as gears, pinions, shafts, and studs. You’ll find this steel performing reliably in the automotive industry for critical transmission parts, within heavy machinery for durable components, and in the oil and gas sector for essential equipment. Essentially, wherever a part needs a hard exterior without sacrificing a resilient interior, AISI 8620 delivers.
